The 24 Columns Grid

The foundation of the design system is the modified bootstrap frontend grid. this grid has 24 columns within the dashboard and 12 columns within the boardlets.
The dashboard is divided into two parts, header and content area. The 24 Columns Grid only applies within the content area.
The grid has no column space, all distances are solved via the margin.


Spacing of the
web max.

Here you can find all important values for building the web max grid. The grid is divided into two main containers. the header area and the content area.

Base

px

rem

Breakpoint158499
Width1920120
Height108067.5
Margin241,5
Content Area

Columns24-
Column Width784.875
Gutter261.625
Header Area

Header241,500
Icon max241,500
Icon min161

Space between
Elements

221.375

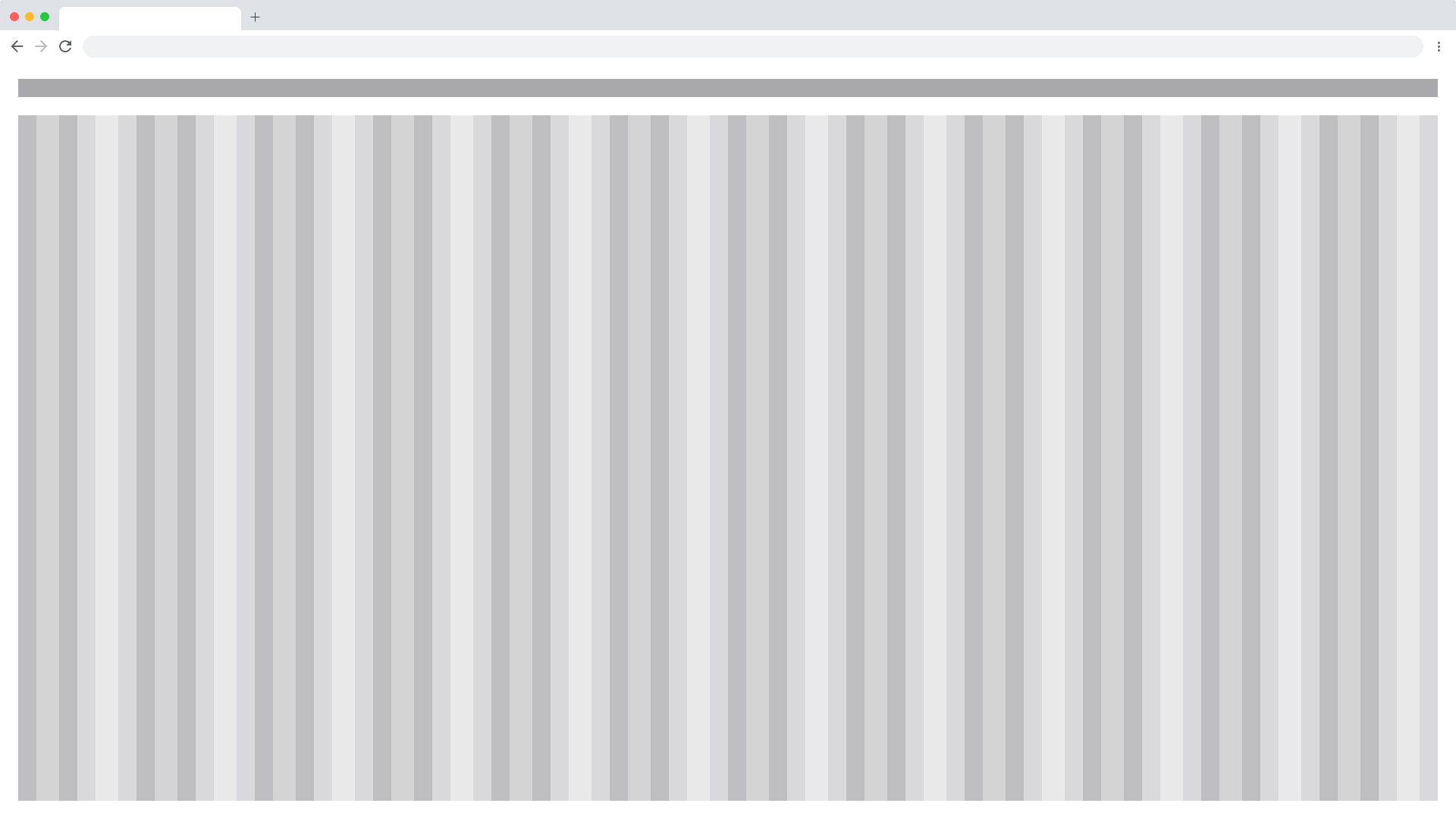

The 24 Columns Gutter

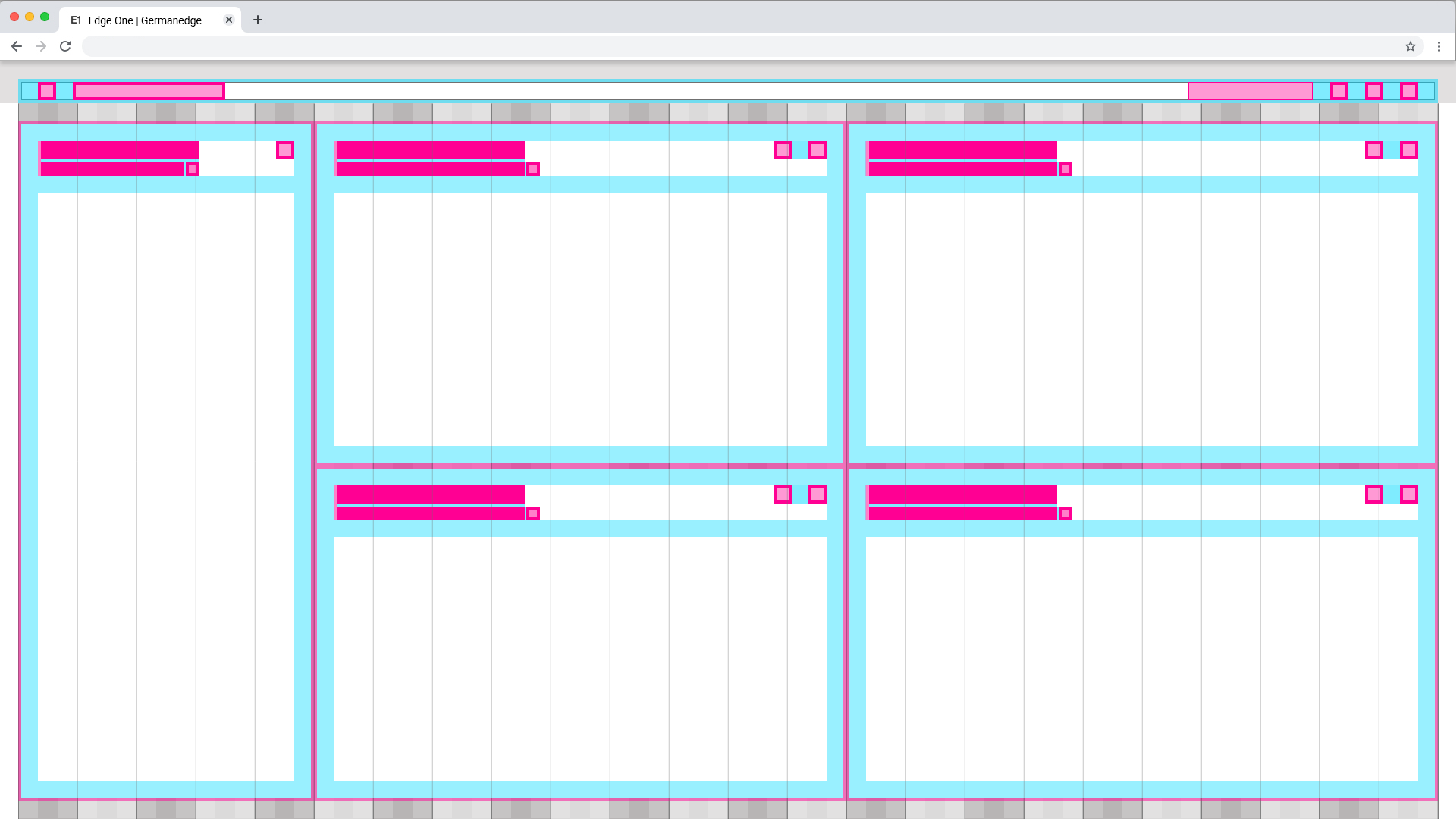

EdgeOne Boardlet example.
This is how the division of the boardlets within this representation could look like. The Edge One/dSFM layout serves as an example.


Best Practice

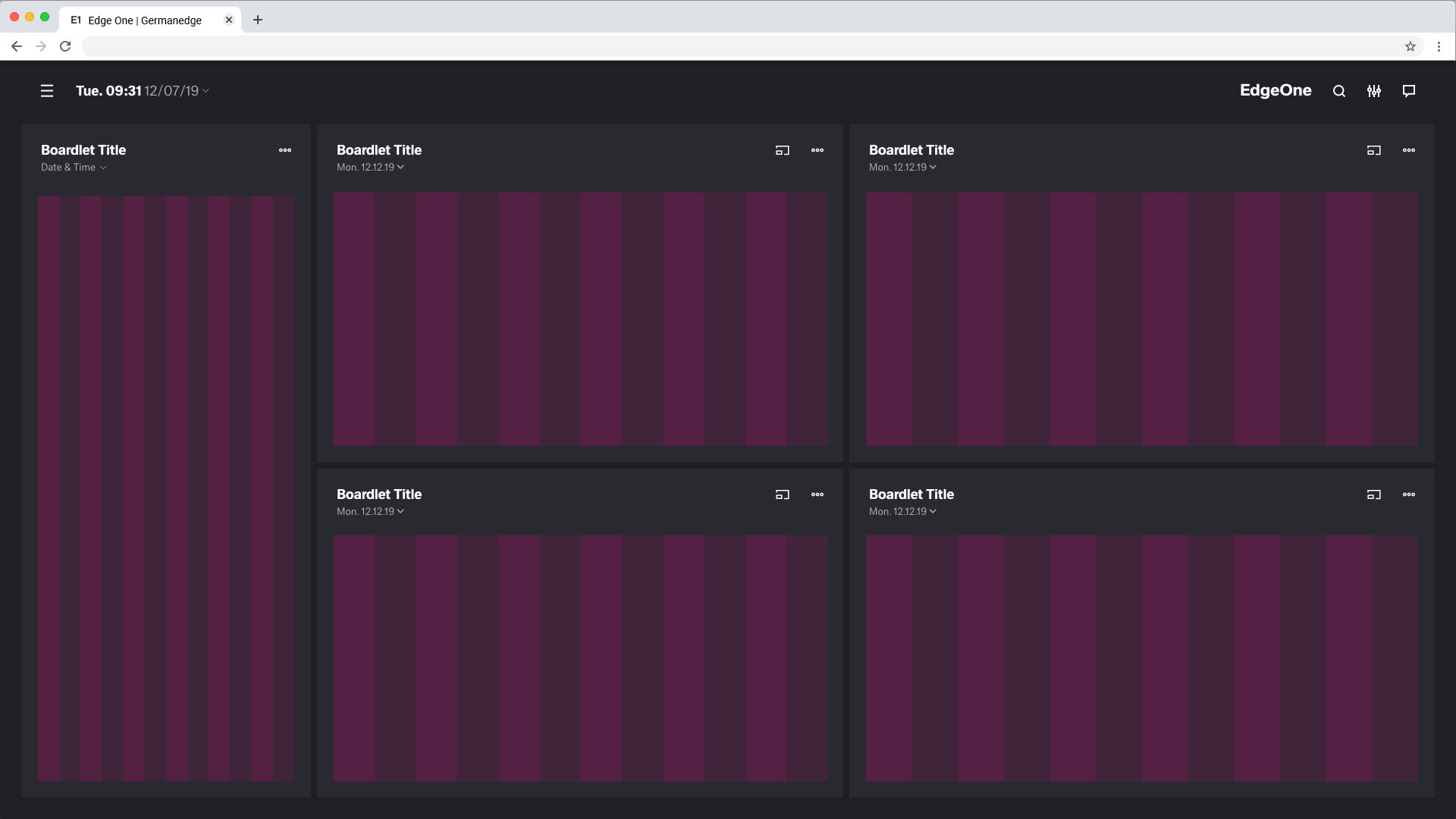

Dark and Light Theme.




X-Series Boardlet example.
This is how the division of the boardlets within this representation could look like. The X-Series/Objective layout serves as an example.

This is a work in progress. Not final!!!



Best Practice
Dark and Light Theme.

This is a work in progress. Not final!!!
