Basics

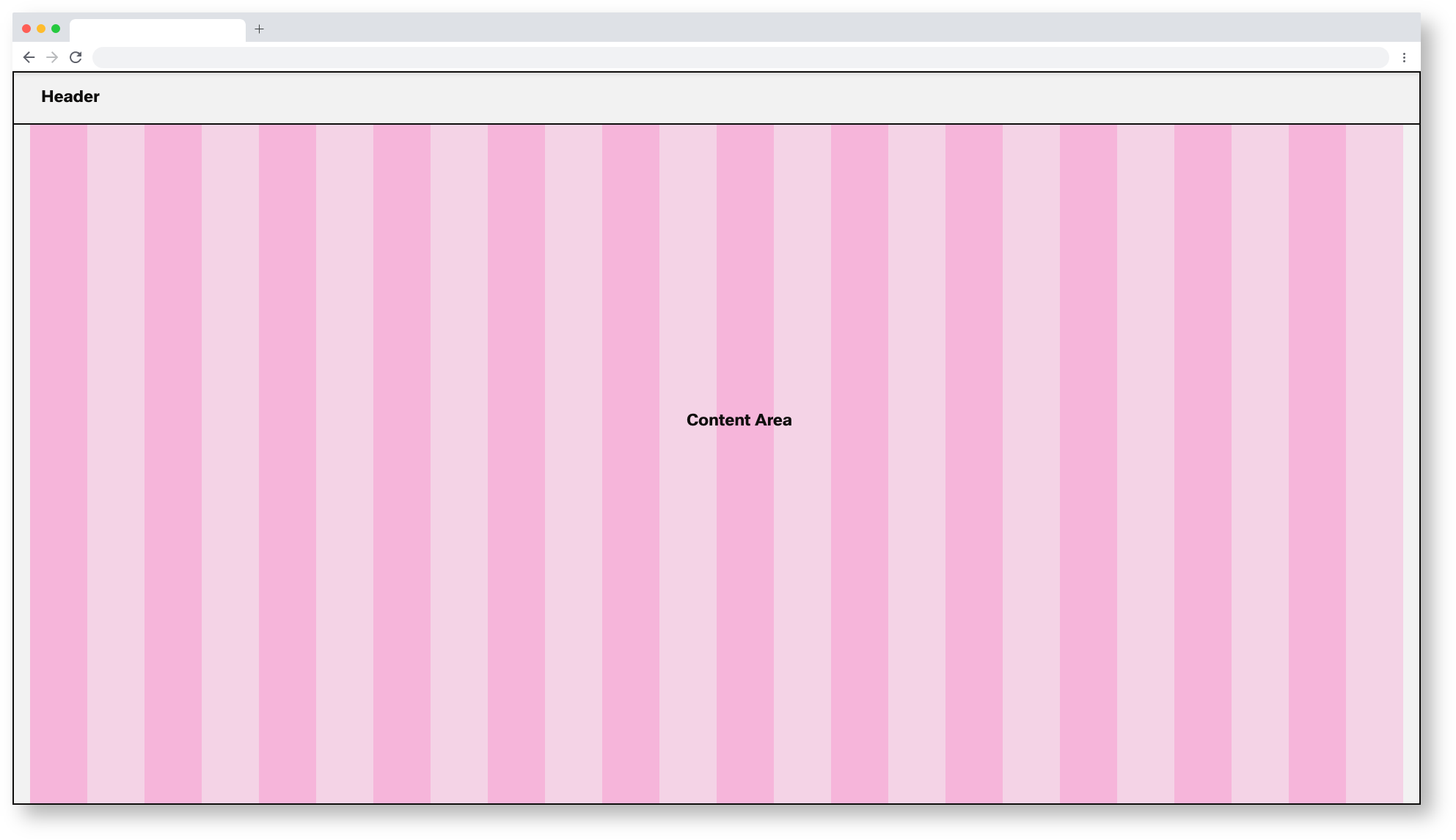

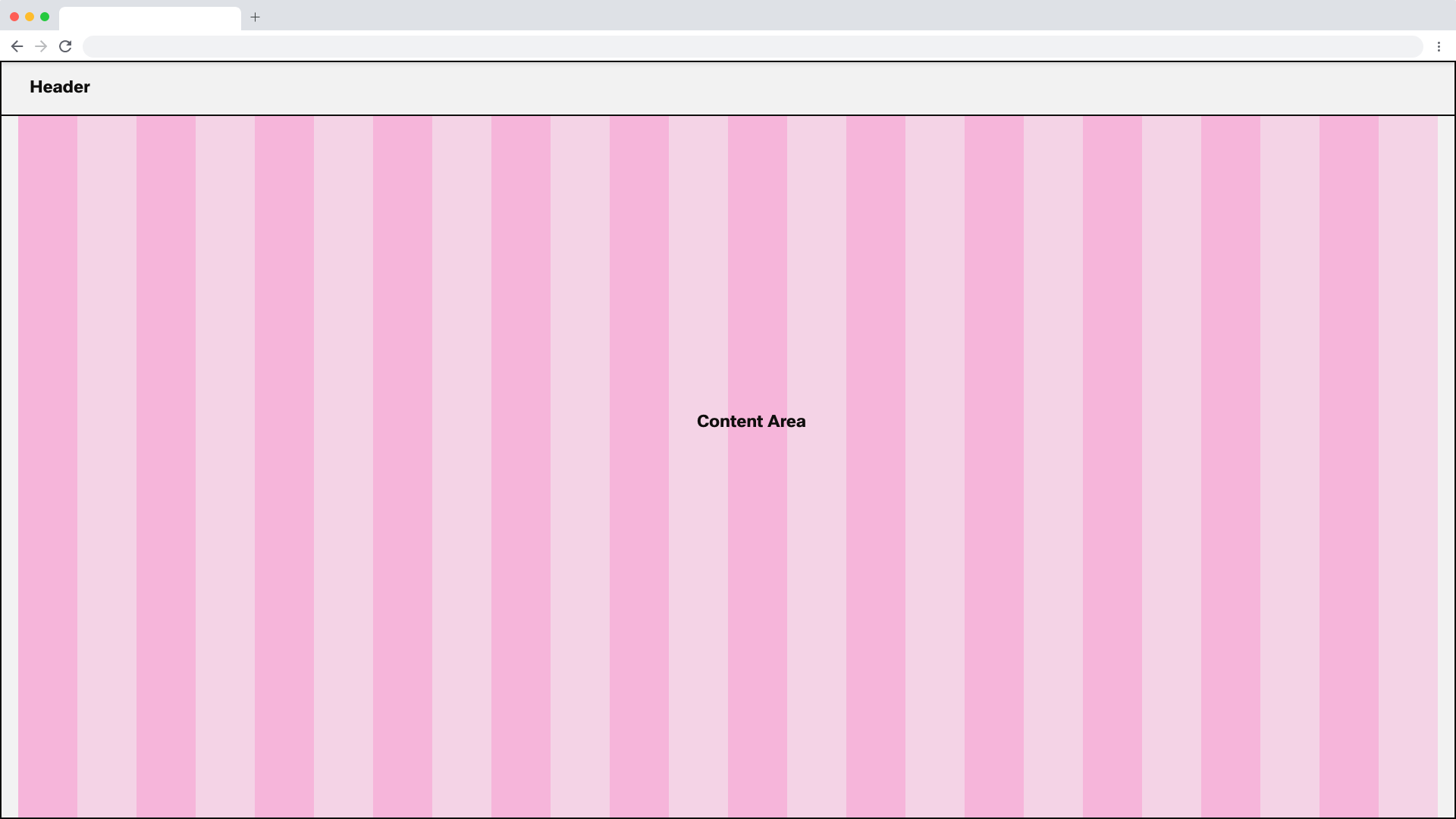

The dashboard always consists of two organism, a header and the content area. The content area can be designed freely, all content must adhere to the 24-column grid. The content may not be positioned freely within the column grid. An overlay must be used for this. All content, in the best case boardlets, start at the top left. They must be placed next to and below each other within the column grid. The header organism always consists of a navigation molecule, logo atom and toolbar molecule.
More details you will find here.
Basic Components of the Dashboard
The dashboard column-grid
The foundation of the design system is the modified bootstrap column-grid. This column-grid has 24 columns within the dashboard and 12 columns within the boardlets. All different breakpoints have a 24 column-grid.

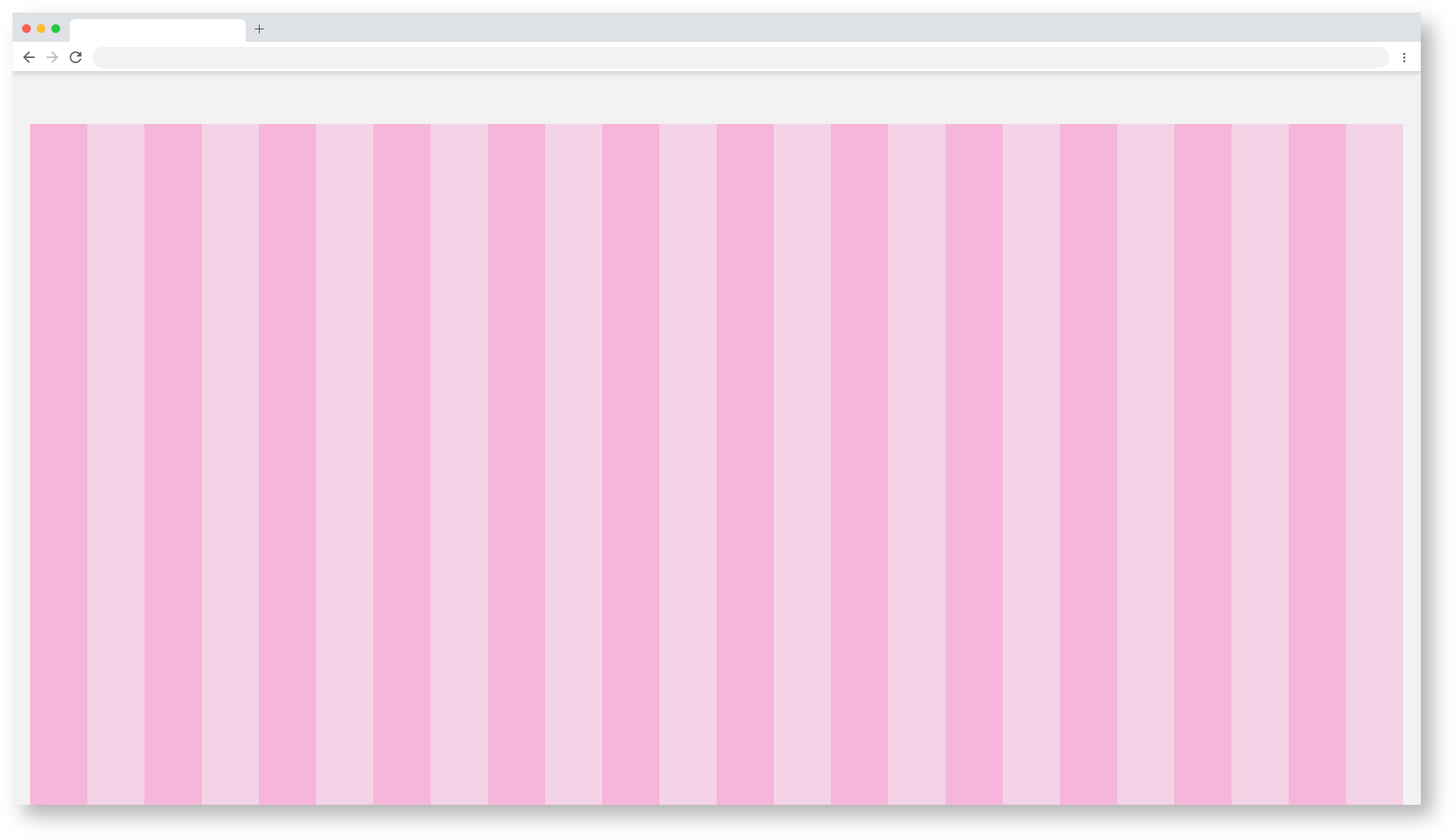

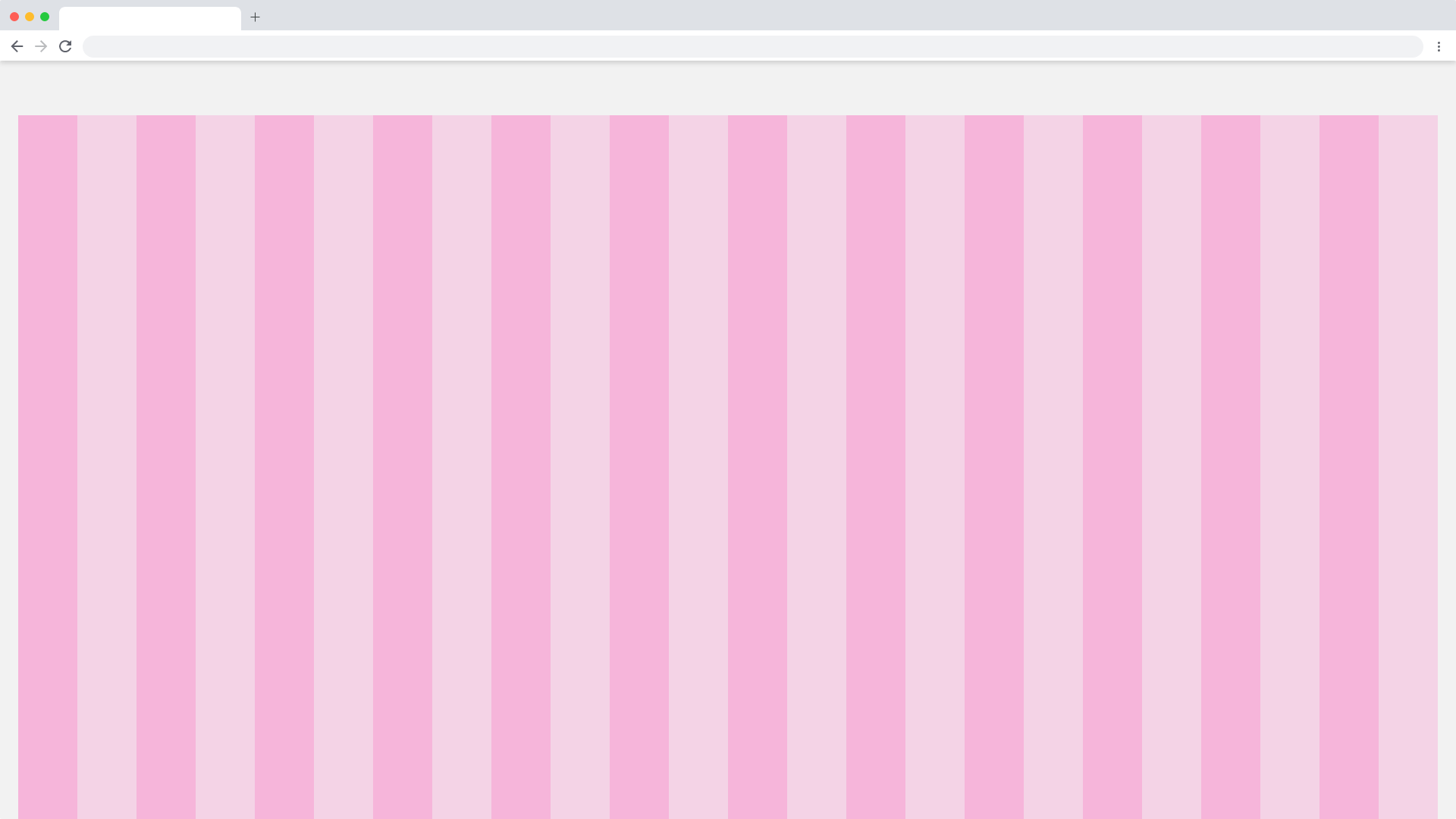

24 Column-grid of the Dashboard

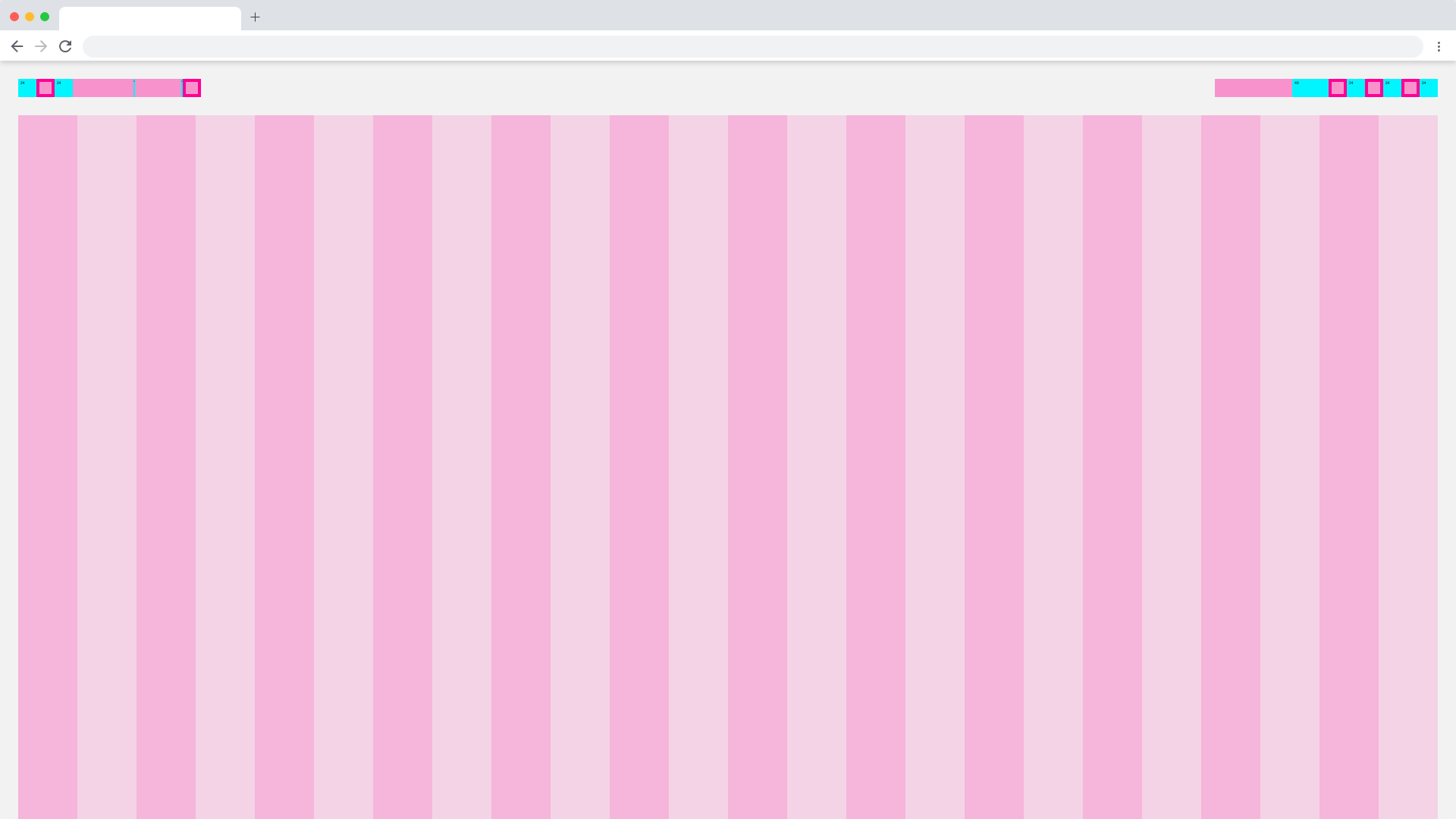

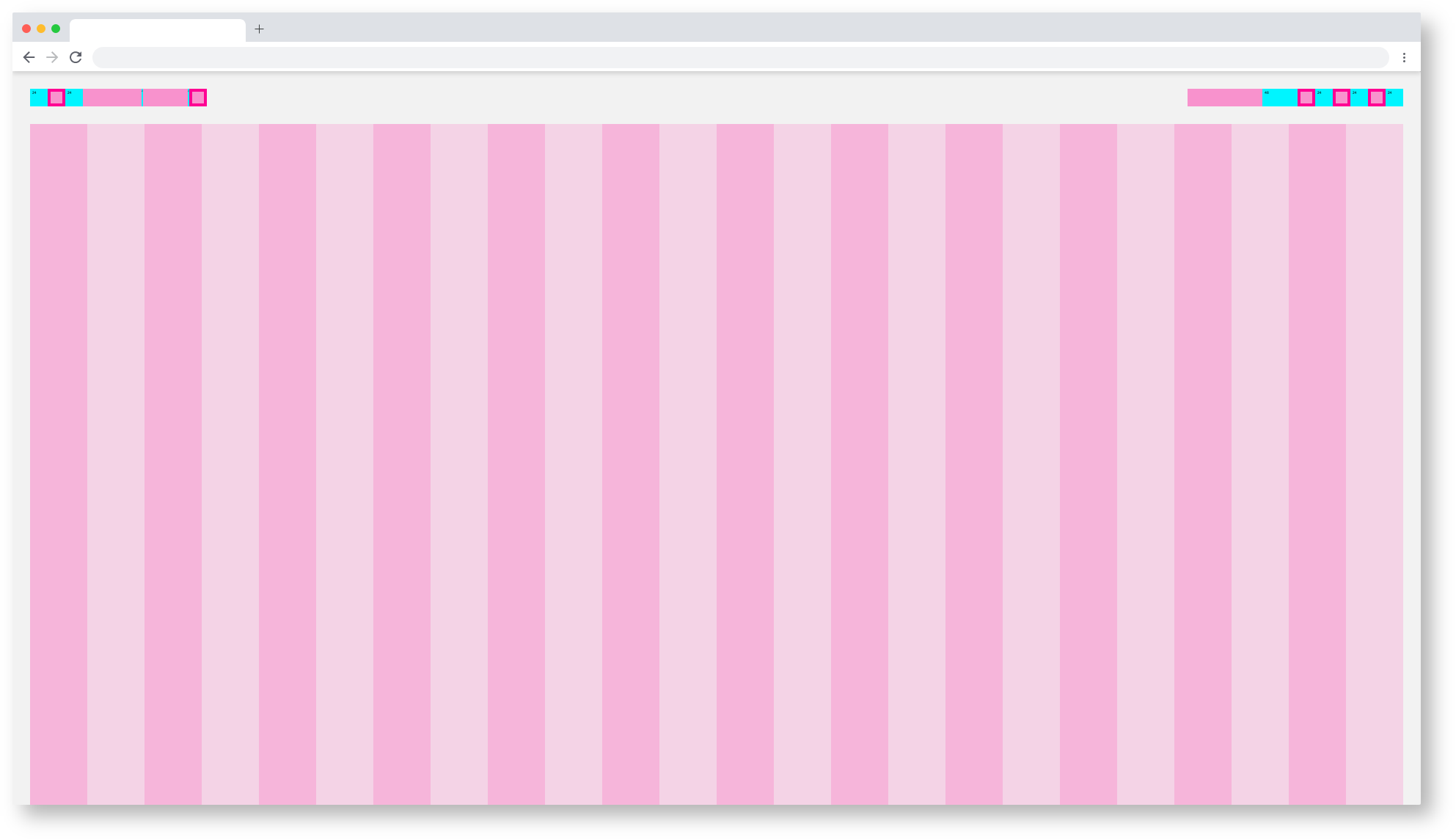

The dashboard spacing
| Base | web_max | web_max (rem) | web_min | web_min (rem) | tablet_landscape | tablet_landscape | tablet_portrait | tablet_portrait | mobile_portrait (px) | mobile_portrait | kiosk (px) | kiosk (rem) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Breakpoint | ≥1800px | - | ≥1200px | - | ≥960px | - | ≥576px | - | <576px | - | WiP | WiP |
| Width | 1920 | 120 | 1280 | 80 | 1024 | 64 | 768 | 48 | 375* | 23,438* | WiP | WiP |
| Height | - | - | - | - | - | - | 1024 | 64 | - | - | WiP | WiP |
| Content Area | ||||||||||||
| Column Width | 78 | 4.875 | 52 | 3.25 | 42 | 2.625 | 31 | 1.938 | 15* | 0,938* | WiP | WiP |
| Gutter | 26 | 1.625 | 16 | 1 | 8 | 0,5 | 8 | 0.5 | - | - | WiP | WiP |
| Content-Area Margin | 24 | 1,5 | 16 | 1 | 8 | 0,5 | 8 | 0.5 | 6 | 0,375 | WiP | WiP |
| Header Area | ||||||||||||
| Header-Area | 24 | 1,5 | 24 | 1,500 | 48 | 3 | 48 | 3 | 48 | 3 | WiP | WiP |
| Icon max | 24 | 1,5 | 24 | 1,500 | 48 | 3 | 48 | 3 | 48 | 3 | WiP | WiP |
| Icon min | 18 | 1,125 | 18 | 1,125 | 48 | 3 | 48 | 3 | 48 | 3 | WiP | WiP |
| Scrollable | yes | yes | yes | yes | yes | WiP | WiP | |||||
| Navi and Toolbar | ||||||||||||
| Height | - | - | - | - | 64 | 4 | 64 | 4 | 64 | 4 | WiP | WiP |
*Iphone 6 / WiP = Work in Progress

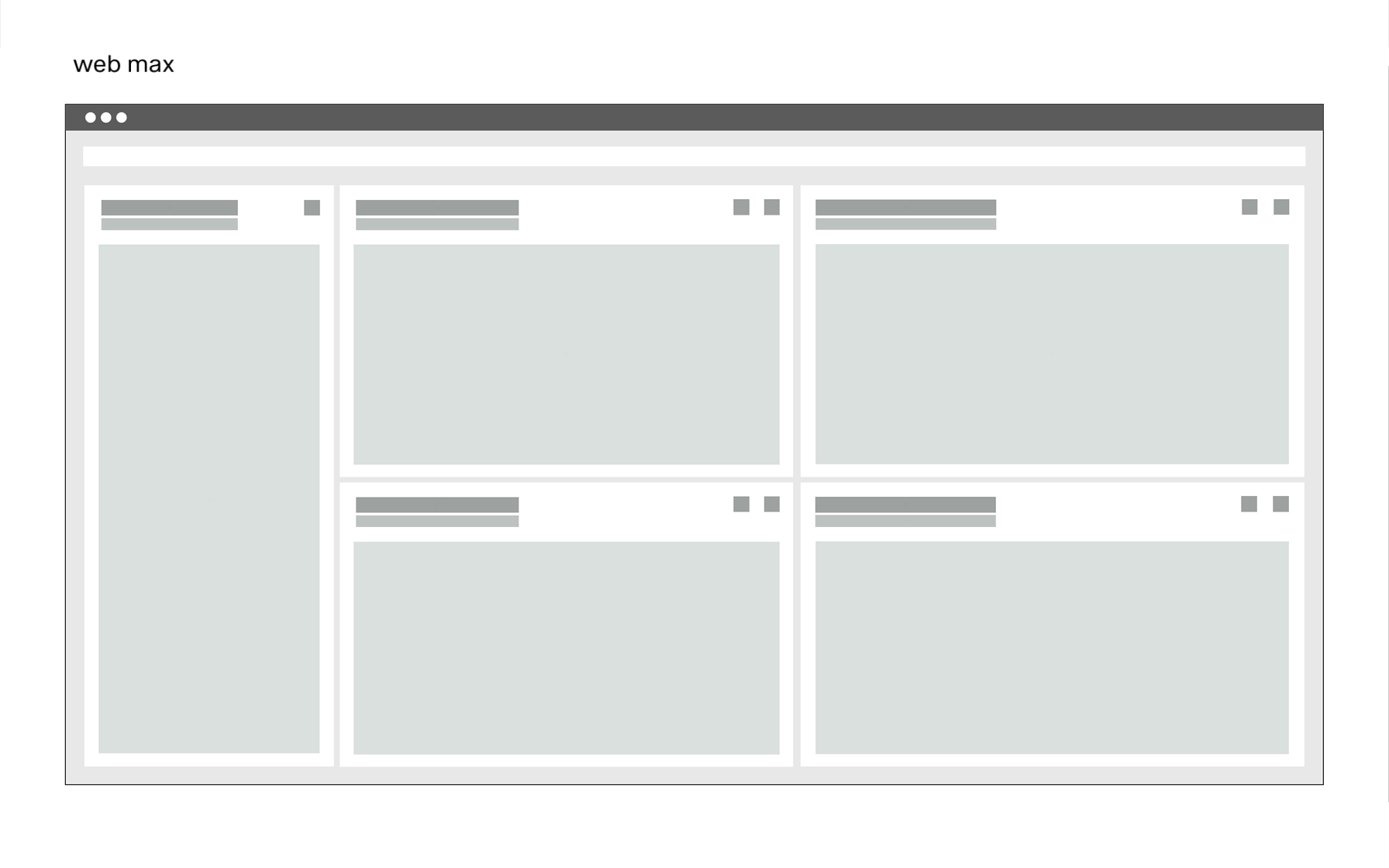

The dashboard breakpoints
All dashboards are divided into different breakpoints. The breakpoints define the visual division and distance of organisms, molecules and atoms from each other in all possible digital formats. This UI design kit considers the Web_Max breakpoint as default, all other breakpoints are located in the category subcategories.
Web_Max/Dashboard
Web_Min/Dashboard
Tablet_Landscape/Dashboard
Tablet_Portrait/Dashboard
Mobile_Portrait/Dashboard
Kiosk/Dashboard
