Overview

Local Navigation helps users move within a specific product area or workflow. It complements Global Navigation by being context-specific, task-oriented, and adaptive to the current dashboard or process step. It supports orientation in flows, navigation between related sections, and forward/back movement without losing context.

Local Navigation is dynamic and flexible and doesn’t need to exist everywhere in Edge.One. Simple applications may not require it. It becomes relevant when dashboards have dependencies (for example, favorites, nodes, or multi-dashboard processes). Because it is limited to the current dashboard context, it can vary between dashboards and should match the local structure and needs of the area.

Anatomy

Local Navigation is composed of reusable navigation surfaces that appear within a dashboard. The set of surfaces depends on the complexity of the area: some dashboards only need lightweight navigation, while others benefit from a persistent structure such as a Navigation Boardlet. Together, these surfaces should support both vertical navigation (drilldowns) and horizontal navigation (step-based flows).

Navigation Boardlet

The Navigation Boardlet is an expandable and collapsible navigation element. It sits on the far left of the dashboard and spans from top to bottom. It provides links and tools for navigating within the current product area, typically presented as a list or a tree.

Navigation items are usually grouped to improve scanning and to reflect the information architecture. Each group should have a clear heading and a distinct icon so users can quickly understand what belongs together.

The boardlet can include dynamic elements that update based on context. For example, counters to the right of links can indicate the number of items in a library behind that link. When a boardlet contains many items, it should support independent scrolling so the dashboard content remains usable.

By combining hierarchical structures with direct links, the Navigation Boardlet supports both horizontal navigation (moving between peer areas or steps) and vertical navigation (drilling down into deeper levels of detail).

Click here for more information on the Navigation Boardlet.

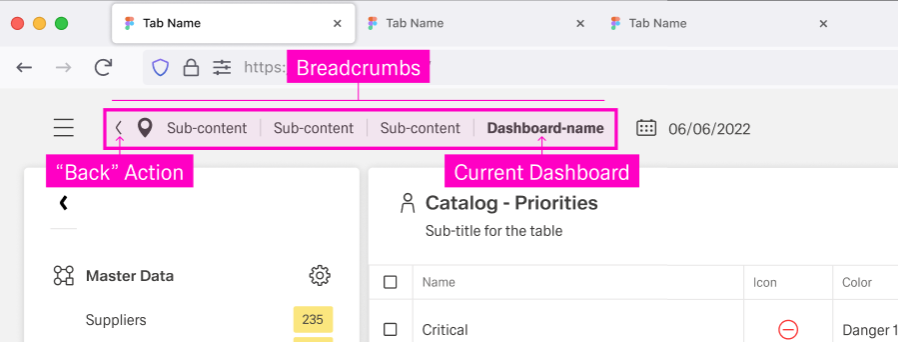

Breadcrumbs

Breadcrumbs show users their current location relative to the information architecture. They enable users to quickly move up to a parent level or return to a previous step.

Breadcrumbs are always located in the left part of the header. All page items in the breadcrumb component are interactive and link to the corresponding pages. The go-back icon moves back one step at a time within the page structure.

They support vertical navigation inside drilldowns and adjust based on the user’s current position in the structure.

Navigation Actions inside the Content

Navigation actions are elements placed inside the dashboard content. They allow users to continue a task directly from where they are working, instead of relying only on side navigation structures. These actions are most useful when navigation is a consequence of an interaction, such as opening details, progressing through steps, or confirming a decision.

For more information on how to use these action, refere to Creating a User Flow.

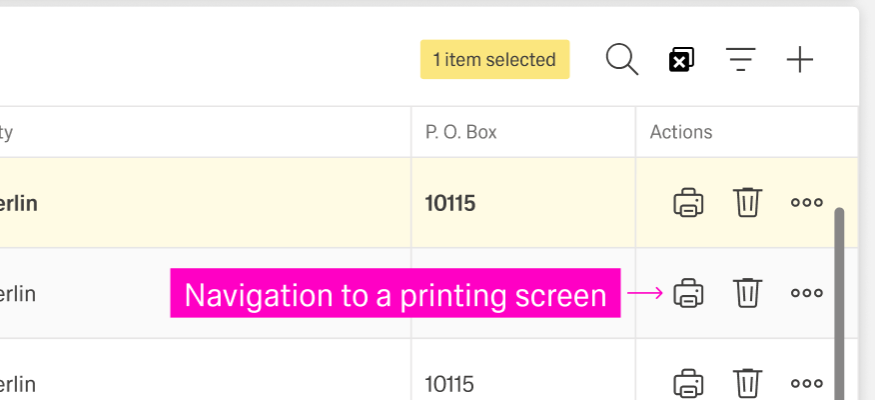

Tables

Table navigation is commonly provided as part of row actions, placed in the last column. It typically routes users to a drilldown page (for example, a details view). This represents vertical navigation to the next layer in the breadcrumb structure.

The destination screen should provide a clear “Back” option. Users should be able to return to the table with minimal loss of context (for example, preserving filters or selection where feasible).

Buttons and Links

Buttons and links inside the dashboard content often support process flows. They are commonly used for horizontal navigation through a sequence of steps, such as “Next” and “Back.” They can also allow vertical navigation, like "View Table" and "Edit Data".

These actions usually appear in toolbars, footer bars, or at the bottom of the content. Use them sparingly to avoid clutter and conflicting navigation paths.

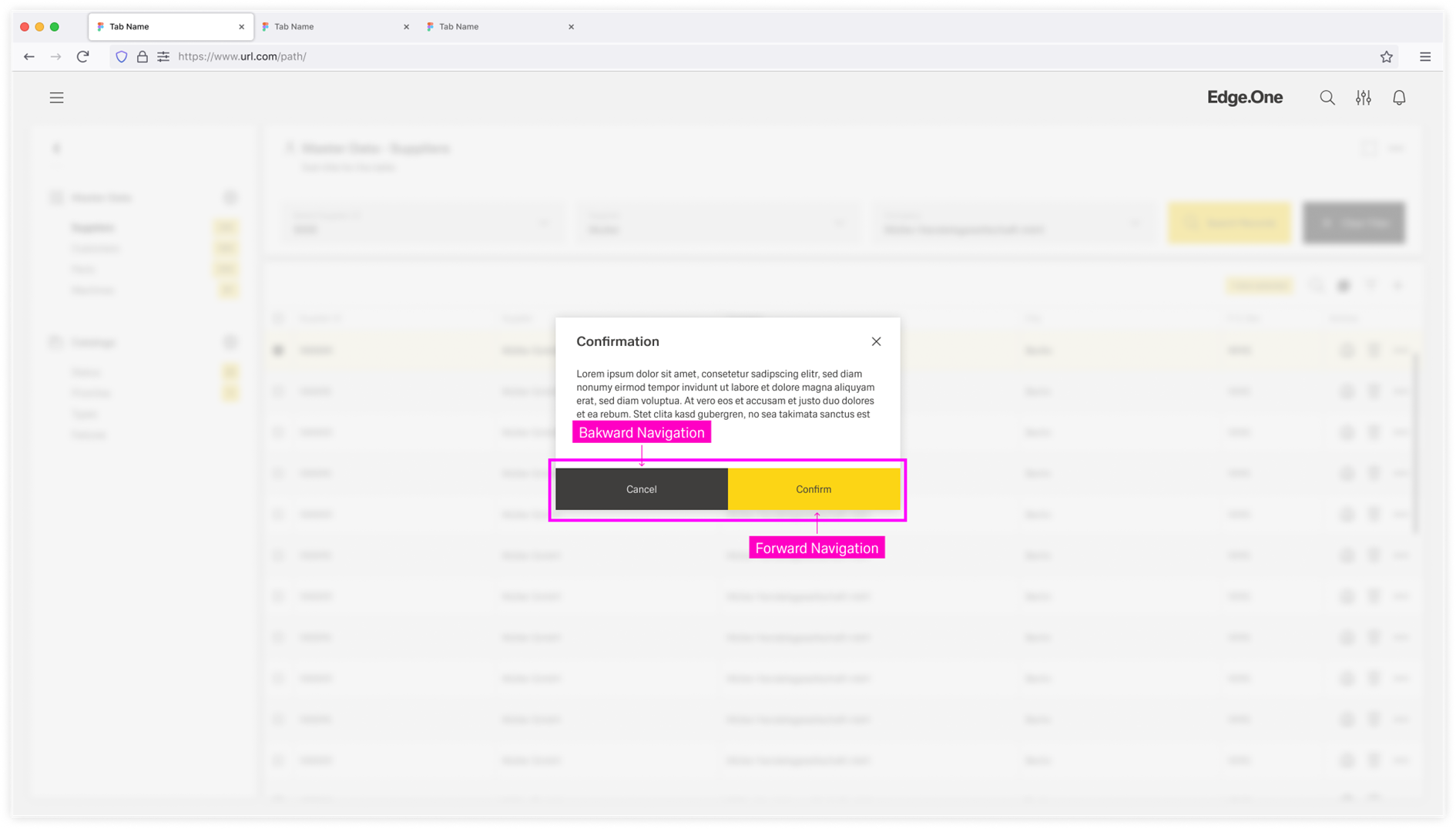

Dialogs

Dialog navigation is usually implemented through footer actions. It typically includes two directions:

• An option to return to the current page (“Back” or cancel/close).
• An option to move forward by confirming an action (for example, accept, submit, or continue), which often leads to a new page.

Depending on the action performed, dialog navigation can represent vertical navigation (to a deeper level) or horizontal navigation (to the next step in a flow).

Best Practices

Balance flexibility with predictability

Local Navigation should reflect the user’s current dashboard, task, and information architecture. Keep options relevant to what users can do from this area, and avoid exposing unrelated destinations.

Variation is expected across dashboards. Within the same application area, however, behavior should stay predictable. Use consistent placement, interaction models, and naming so users can build reliable habits.

Keep structures easy to scan

Prefer clear groupings over long flat lists. Avoid deep trees, especially when they require repeated expand/collapse to reach common destinations. If navigation becomes hard to scan, reduce nesting, shorten labels, and consider adding shortcuts or search.

Choose the right surface

Use a Navigation Boardlet when users need persistent navigation across sections of an area. Use breadcrumbs primarily for orientation and moving up a hierarchy. Use in-content navigation actions for step-based flows and drilldowns where users need to act and then move forward.

Navigation inside a process

Local Navigation should not route users into the middle of a process or conditional content. Link to a process entry point or overview instead, and let step-to-step movement happen inside the process UI (for example, Next/Back).

Drilldown destinations should include a clear path back. Breadcrumbs, a visible “Back” action, or both can work, as long as the behavior is consistent.

Always communicate “where I am” and “what will happen next.” Highlight the current destination in the boardlet. If a group is collapsible, its expanded/collapsed state should be clearly visible.

Language and labeling

Use user-facing language. Keep labels concise and aligned with page titles, and avoid internal jargon. Similar destinations must have distinguishable names.

If local navigation can link to external destinations, label them clearly so users understand they are leaving the current context.
